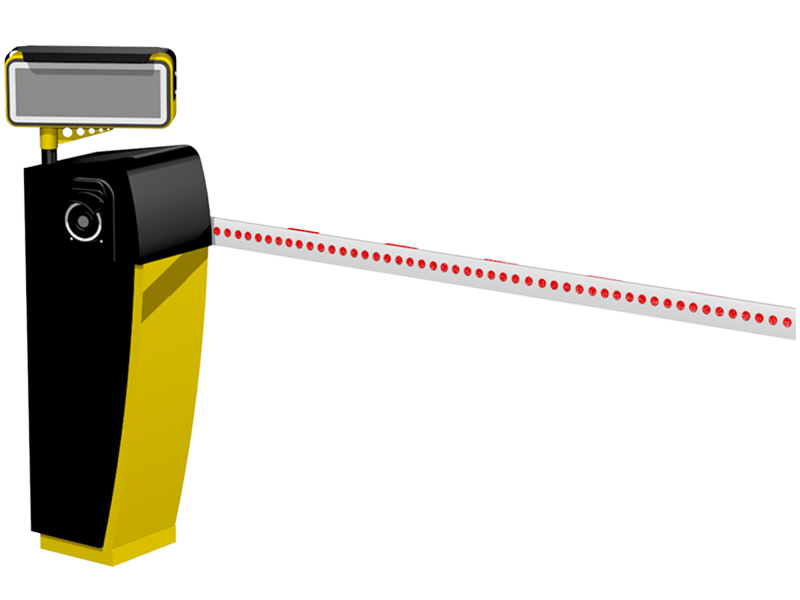

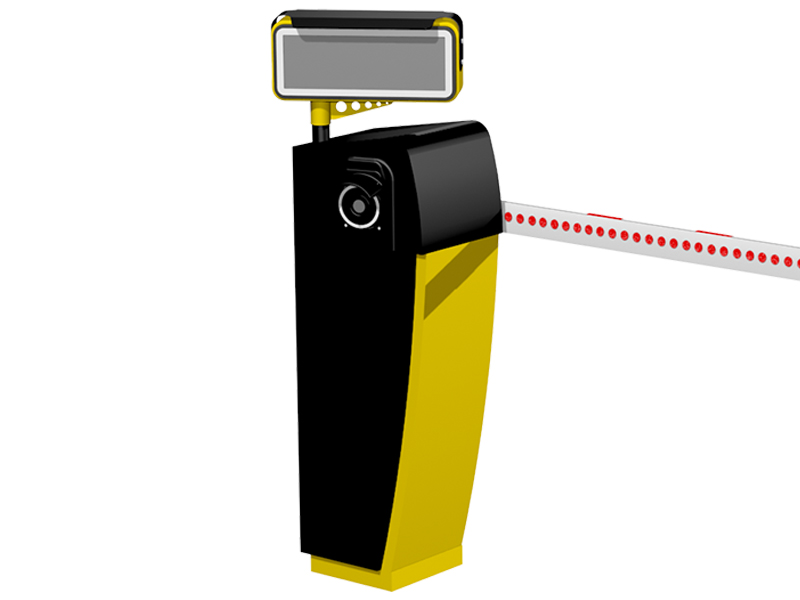

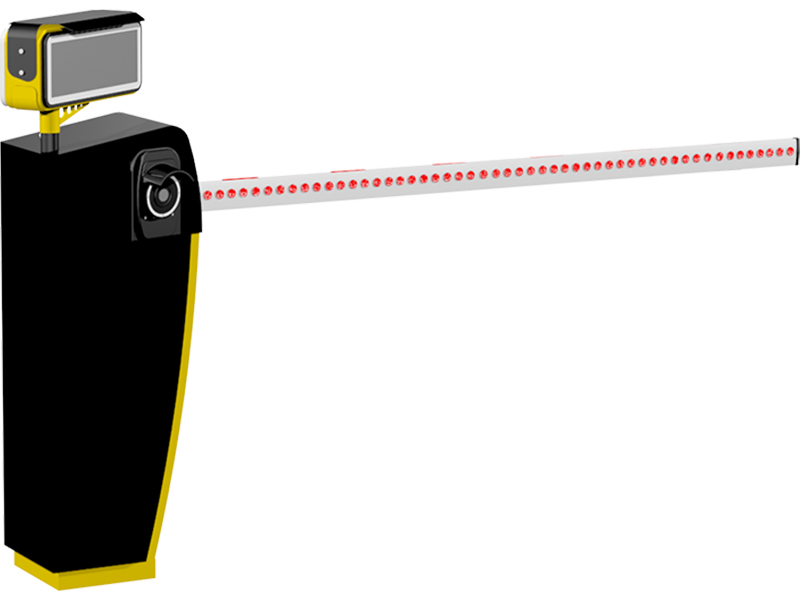

Integrated License Plate Recognition
GT-8600E
A smart parking total solution including parking system manufacturing, parking lot operation, system development, mobile parking service
| Recognition rate | 98% or more (except front and back bad license plate, special license plate) |
| Recognition target | Cars and trucks |
| Recognition details | Hangul and numbers of license plate |
| License plate recognition speed | Less than 1 second |
| Shooting method | Trigger method |
| Communication method | LAN(TCP/IP) |
| PC | Intel i5-3437U , 4GB RAM, 64GB SSD, Windows 7 Embedded |
| Shutter speed | 1/60 ~ 1/10,000 |
| Lighting device | IR LED lighting |
| Lighting angle | 20˚ |
| Resolution | Horizontal 1280 pixels, Vertical 960 pixels |
| Image pickup device | CMOS sensor |
| Vehicle speed in which shooting is possible | 30Km/h or less |
| Communication method | Giga Ethernet |
| LED Display Board module | 46㎜ × 46㎜ module (2nd and 6th columns) |
| Communication method | LAN(TCP/IP) |
| Driving method | BLDC Motor direct drive and BLDC control |
| Operating speed | Can adjust shutter bar rise / fall from 1.5 seconds to 3 seconds |
| Bar length | Up to 3M |
- Recognize the license plate by disassembling the image transmitted by the Number recognition camera.
- Connected to the number management computer via LAN, transmit the recognized license plate image screen
- Receive a signal from Vehicle Detection Ultrasonic Sensors and transmit a signal that can operate the strobe lighting device for shooting of constant illumination
- When changing the license plate in the future, support the compatibility for the changed license plate during the defect period.
- Display the license plate, guide letter, and parking fee in the LED Display Board
- LED of LED Display Board uses makes it easy to identify outdoors even daytime and climate change
- One License Plate Recognition recognizes both front and rear license plates.
