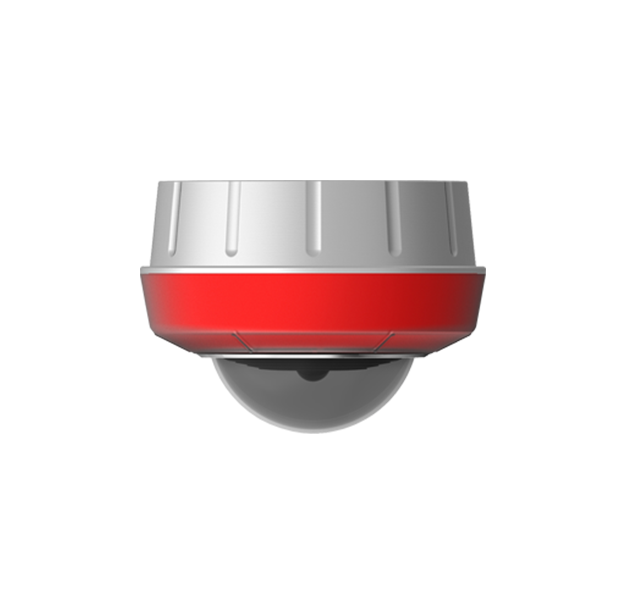

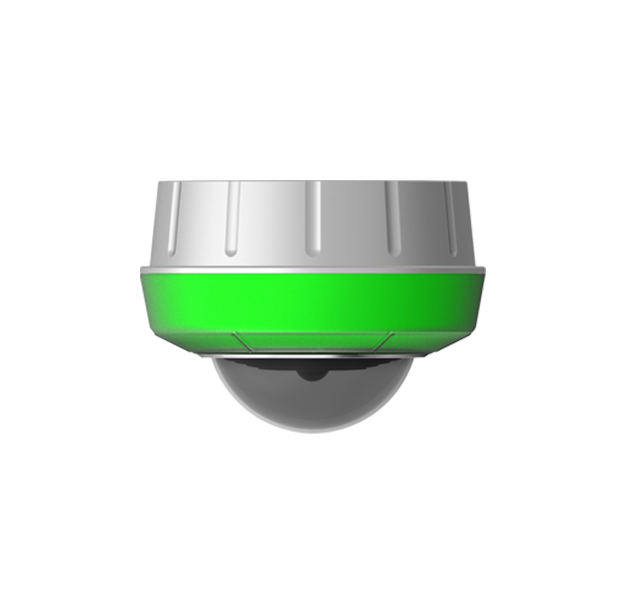

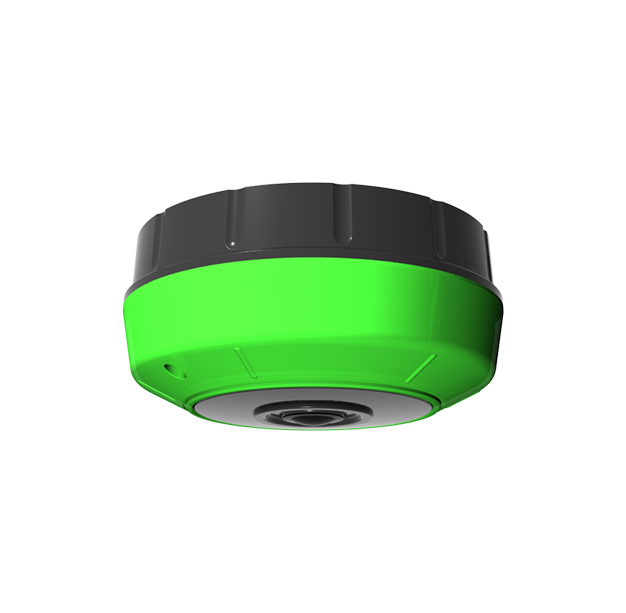

Omnidirectional Camera
AKC-OC-CA
Images of 6 sides of the parking lot are analyzed and linked with 1 omnidirectional parking side camera of 12 million pixels at the same time and this is a system of not only guiding parking status information by floor, area to customers using the parking lot but monitoring vehicles or people passing the passage and providing parking guide and my car position checking service by perfect security, surveillance (41/130/200/3 million pixels) without 360˚ blind spot
| Product Specifications | |
| Input voltage | PoE 36~57V DC |
| CPU | ARM926EJ based (600MHz) |
| Power Consumption | About 7W(including full/empty display lamp) |
| Minimum subject illumination | 0.1Lux @ F1.4(Color) |
| Frame | Up to 15 FPS for video, 1 FPS for JPEG image |
| Form | Race Way Attached Type |
| Vehicle image | JPEG |
| Recognition rate | 98% or more (for normal license plate) |
| Shooting element | 1/2.3“ COLOR 12.4M CMOS |
| License plate recognition range | MAX. 6 cars (simultaneous analysis of license plates (4 digits)) |
| Communication method | 100M Ethernet |
| Synchronization method | Internal Trigger |
| Lens focus | 4~6mm |
| Video | H.264 |
| TYPE | Including LED |
| Main Features |
| 01 Rapid parking guidance to empty parking space, video parking detection and parking surface real-time video shooting and transmission, Obtain evidentiary materials in case of an accident |
| 02 Video detection discrimination function |
| 03 Dual-streaming method with 360 ° parking surface (maximum 6 sides), super-high-definition image of 12 million pixels in real time, and simultaneous transmission of video of 130-megapixel or 200-megapixel to IPU |
| 04 Recognized by 6 parking surface license plate at the same time, Using a 12 Mega pixel high resolution digital omnidirectional camera |
